PRODUCT DESCRIPTIONS

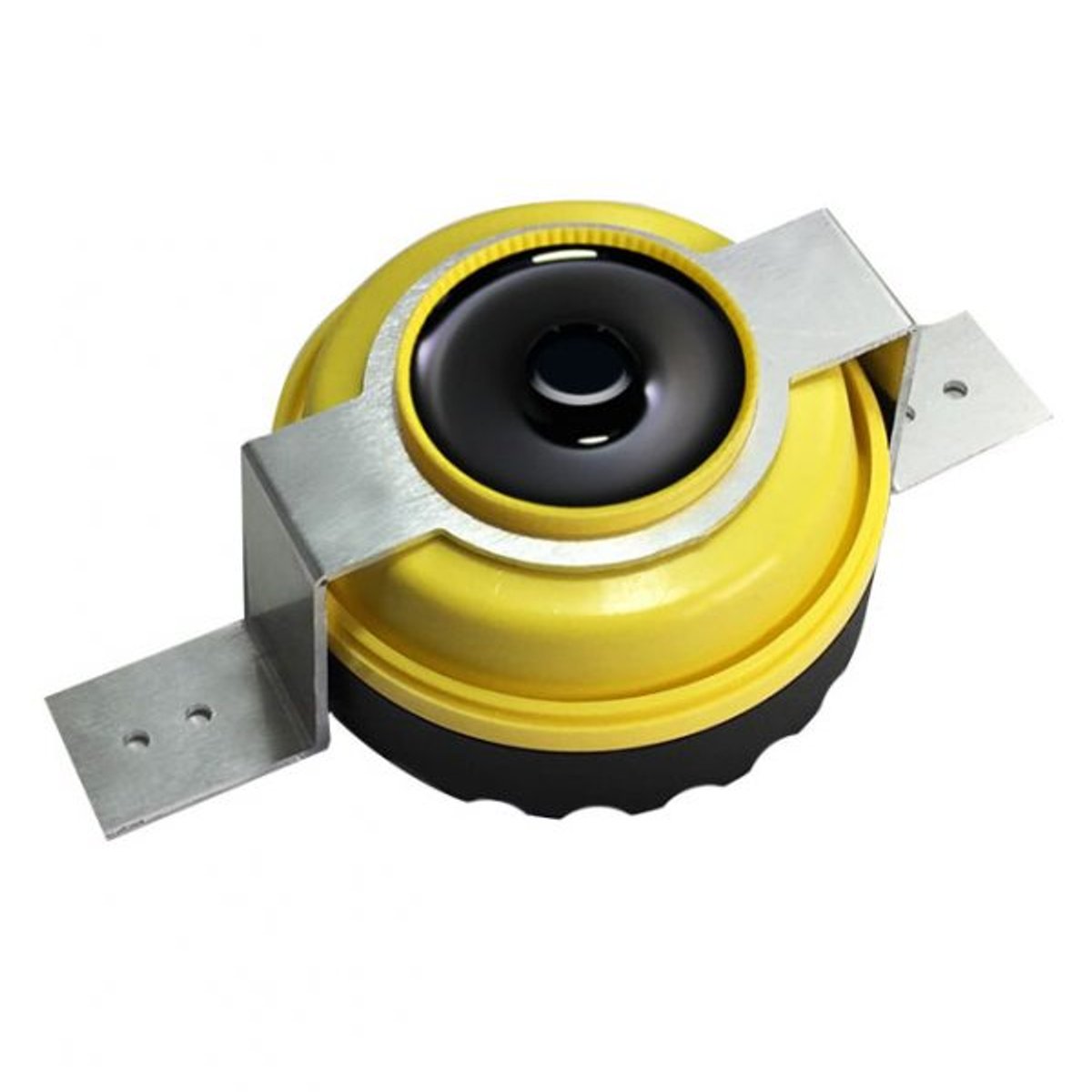

NETOP Waste Bin sensor is a long range wireless sensor which can be used for monitoring waste container’s fill level of waste bin/container by using highly optimized ultrasonic sensor. It enables optimization in the route planning for waste collection and provides improved container management. This sensor is fully compatible with LPWAN technology by using NB-IoT (Narrowband-IoT). The standard version of this sensor is powered by one replaceable 3.6 V AA sized battery (included with purchase).

KEY FEATURES
• Real plug & play
• Easy to mount & install
• Maintenance-free – install & forget
• Excellent Extended Range in Buildings and Underground
• Easy deployment utilizing cellular system
• Micro SIM(default) or Chip SIM Card(depend on request)
• Ultra Low Power Consumption
• Certifications: CE, RoHS
COMMUNICATION SPECIFICATIONS
• The sensor uses LPWAN technology; Narrow Band IoT (NB-IoT) for connectivity
• Supported bands including B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B26/ B28
• Internet Protocol Feature: Support IPv4/TCP/UDP
• Full duplex communication
• Extended Coverage: 10-15km with 164 dB maximum coupling loss (MCL)
• Antenna Types: Internal(default) or External(depend on request) Antenna
MECHANICAL CHARACTERISTICS
Housing    ABS
Dimensions    90 x 55 mm
Operating Temperature    -40°C to +85°C
SENSOR SPESIFICATIONS
Detect range    Up to 2000 mm
15-300 cm    ± 10 mm
Data Transmission Period    4 hours (default)
Battery Life    +10 years
Power Supply    AA Battery 3.6 V Li-SOCl2-Saft LS 14500 (Standard 3 piece)
Indicators    RGB Status LED (on board)
CERTIFICATIONS & RELIABILITY
• CE
• EN 62479
• EN 60950
• EN 301 489-1
• EN 301 489-17
• EN 300 328
